High Ankle Carbon Fiber Energy Storage Foot

Product Name

High Ankle Carbon Fiber Energy Storage Foot

Item NO.

1CFH-003

Size Range

22cm~27cm, interval:1cm

Heel Height

10mm~15mm

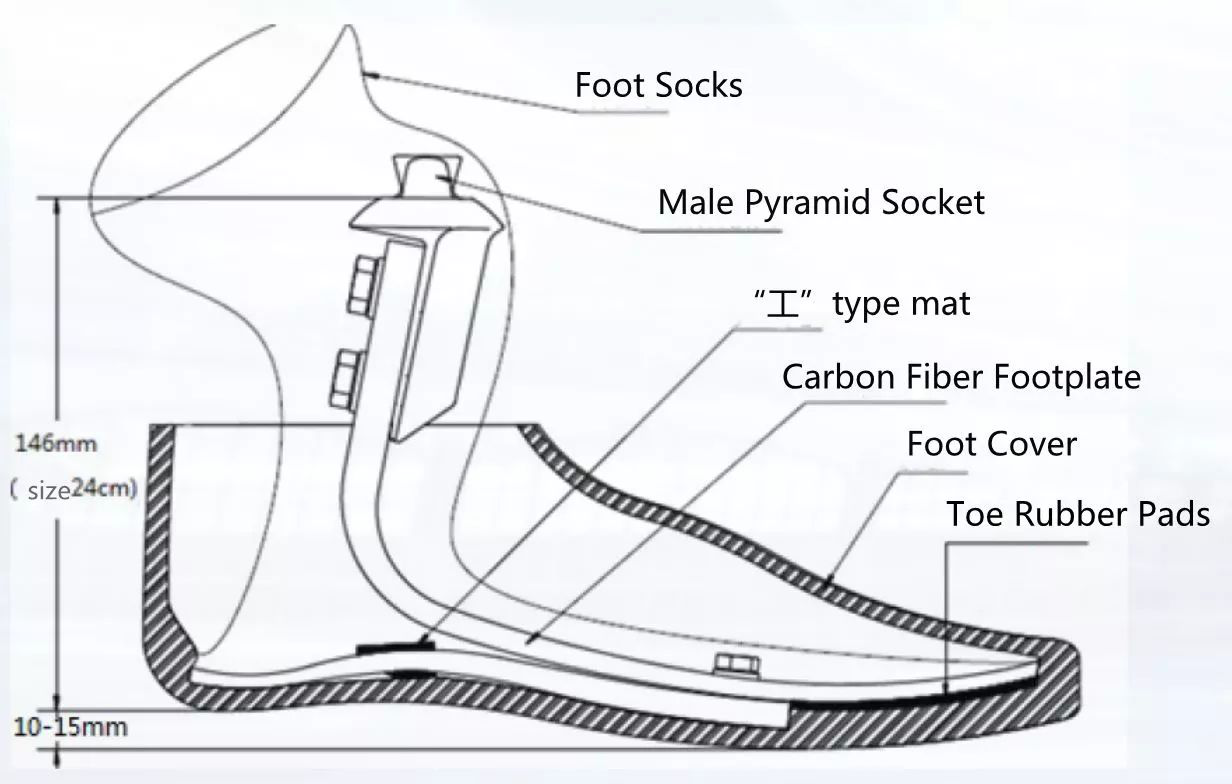

Structural Height

146mm (size:24cm)

Product Weight

390g(size:24cm, without foot cover)

Load Range

85-100kg

Product Description

Carbon fiber energy storage foot is a high structure & split toe type foot for energy storage. It is developed by researchers from the Institute of technology, Peking University. We have complete independent intellectual property rights of which from prototype design, simulation experiment, carbon fiber laying technology to later stage process experiment using aero carbon fiber material and molding process. Compared to the traditional prosthetic material, it has high strength, good elasticity, light weight, long service life etc. advantages.

Main Features

The high structure design of product can make use of the reaction force of the ground to the maximum extent, have better energy storage, make the rolling process of the foot board more smooth, and the gait is more natural.

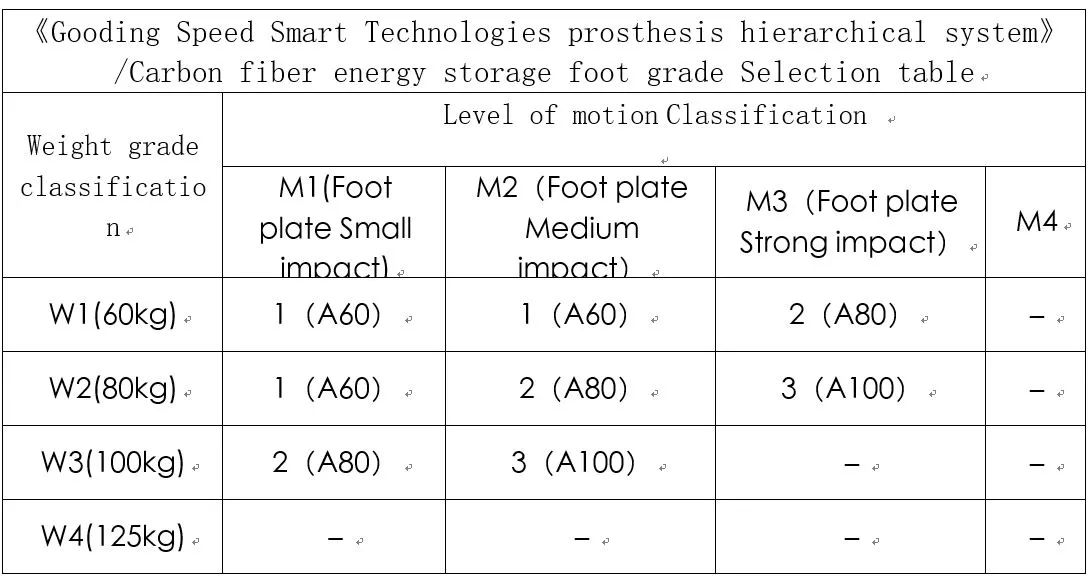

Weight Level Of Motion

1~3 According to （Gooding Speed Smart Technologies prosthesis hierarchical system）
